Columns
| Column | Type | Size | Nulls | Auto | Default | Children | Parents | Comments | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| analyte_det_id | serial | 10 | √ | nextval('analyte_determination_analyte_det_id_seq'::regclass) |
|
|
PK. Unique ID for each analytical result. Generated by database. |
||||
| determination_unit | varchar | 10 | √ | null |
|
|
The unit of the measured result e.g. wtpct, ppm, permil. |
||||
| batch_id | int4 | 10 | null |
|
|
FK. ID for a batch. Links to the batch_sample table. |
|||||
| limit_id | int4 | 10 | √ | null |
|
|
FK. ID for analyte_code and determination upper and lower limits. Links to the analyte_determination_limits table. |
||||
| abundance | numeric | 17,9 | √ | null |
|
|
Measured result |
||||
| result_notes | varchar | 4000 | √ | null |
|
|
Notes about the result |
||||
| sample_id | int4 | 10 | null |
|
|
FK. ID of the sample. Links to the batch_sample table. |
|||||
| timestamp_created | timestamptz | 35,6 | now() |
|
|
||||||
| timestamp_modified | timestamptz | 35,6 | √ | now() |
|
|
|||||
| is_below_detection | bool | 1 | √ | false |
|
|
Whether the result was below the detection limit (see analyte_determination_limit.lower_detection_limit). Note constraint: abundance can only be empty when the result was below or above detection. |
||||
| uuid | uuid | 2147483647 | √ | public.gen_random_uuid() |
|
|
Randomly generated unique identifier |
||||
| is_public | bool | 1 | √ | true |
|
|
Whether or not the result is public. True by default. |
||||
| is_average | bool | 1 | √ | false |
|
|
Whether or not the result is an average of more than one measurement. False by default. |
||||
| reference_id | int4 | 10 | √ | null |
|
|
FK. ID for the reference work where the result was first published. Links to the reference_work table. |
||||
| reference_notes | varchar | 4000 | √ | null |
|
|
Notes about the reference work that pertain to this particular result. |
||||
| is_above_detection | bool | 1 | √ | false |
|
|
Whether the result was above the detection limit (see analyte_determination_limit.upper_detection_limit). Note constraint: abundance can only be empty when the result was below or above detection. |
||||
| two_sigma | numeric | 5,2 | √ | null |
|
|
Two standard deviations from the mean |
||||
| n | int4 | 10 | √ | 1 |
|
|
Number of data points included in average, where reported data is an average. |
||||
| two_se | numeric | 5,2 | √ | null |
|
|
Two standard error |
||||
| std_dev | numeric | 8,3 | √ | null |
|
|
Standard deviation |
||||
| one_se | numeric | 5,2 | √ | null |
|
|
One standard error |
||||
| cv | numeric | 0 | √ | null |
|
|
Error correlation |
||||
| rho | numeric | 0 | √ | null |
|
|
Spearman’s rank correlation coefficient/Pearson correlation coefficient |
||||
| agemodel_ma | numeric | 6,2 | √ | null |
|
|
Age model in Ma for some isotopic results |
Indexes
| Constraint Name | Type | Sort | Column(s) |
|---|---|---|---|
| analyte_det_id | Primary key | Asc | analyte_det_id |
| analyte_determination_batch_id_idx | Performance | Asc | batch_id |
| analyte_determination_limit_id_idx | Performance | Asc | limit_id |
| analyte_determination_sample_id_idx | Performance | Asc | sample_id |
Check Constraints
| Constraint Name | Constraint |
|---|---|
| abundance_null | (((abundance IS NOT NULL) OR (is_above_detection IS NOT NULL) OR (is_below_detection IS NOT NULL))) |
| abundance_negative | (((abundance >= (0)::numeric) OR ((determination_unit)::text = 'permil'::text) OR (determination_unit IS NULL))) |

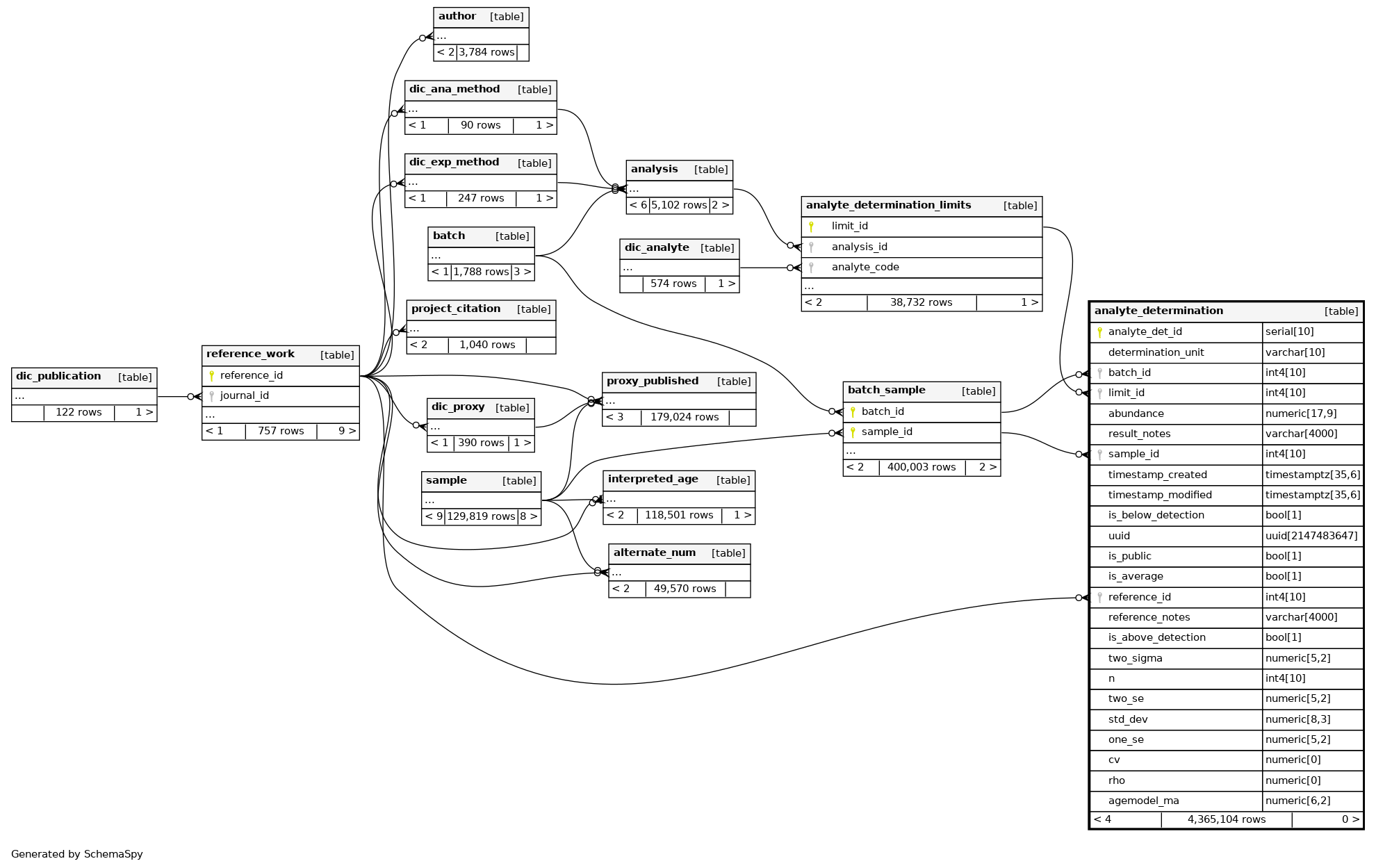

Relationships
Close relationships within degrees of separation
